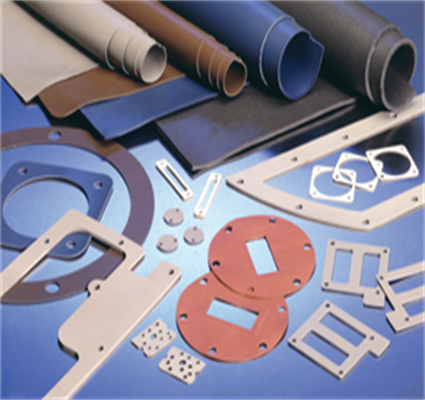

派克固美丽导电弹性体/导电橡胶——板料和模切件

几乎每一种Chomerics 民用弹性体材料的板材均有货，我们的标准尺寸和厚度的板材能满足大多数使用者的需要。表中没有的尺寸，请与客服联系。

订购热线：400-051-8106

产品描述

派克固美丽导电弹性体/导电橡胶——板料和模切件

几乎每一种Chomerics 民用弹性体材料的板材均有货，我们的标准尺寸和厚度的板材能满足大多数使用者的需要，见表2。表中没有的尺寸，请与我们公司联系。所有0.032in.(0.81mm)厚或更厚一些的标准硅酮板都带有非导电压敏粘合剂薄背衬（PSA）。这层粘合剂增加了衬料的体积电阻率和界面法兰电阻，相应降低了屏蔽效果（一般5-10db）。本样本中所述的技术规格、性能和特点，均不包含这一粘合剂背衬。

派克固美丽导电弹性体——板料和模切件

产品定制

定做件可以由我们公司从任何标准板料上模切下来。请提供草图或图纸（公差见表1）。对定做的模切件，Chomerics的物料编号是：19-11-XXXX-ZZZZ

这里xxxx是一个序列工程图号，由Chomerics 来确定，ZZZZ是材料符号（1350、S6304等等）。

表1：

派克固美丽板料和模切件产品定制

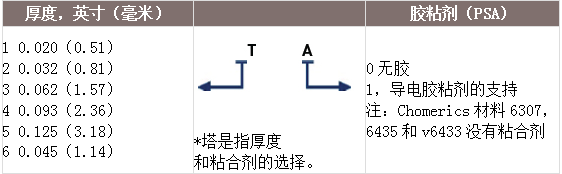

订货步骤从表2选择物料编号，后4位或5位数字表示材料。对于物料编号里的“TA”选择所需要的厚度和粘合剂选项（在表2下面方框中）。对于定做的尺寸或厚度，物料编号将由Chomerics来确定。

表2：

标准版尺寸可供货的厚度, inches (mm)
物料编号	板尺寸Inches (cm)	0.020 ±0.004 (0.51 ±0.10)	0.032 ±0.005 (0.81 ±0.13)	0.045 ±0.006 (1.14 ±0.15)	0.062 ±0.007 (1.57±0.18)	0.093 ±0.010 (2.36 ±0.25)	0.125 ±0.010 (3.18 ±0.25)
40-TA-1010-1212	10 x 10 (25.4 x 25.4)	√	√	√	√	√	√
40-TA-1015-1212	10 x 15 (25.4 x 38.1)	√	√	√	√	√	√
40-TA-1020-1212	10 x 20 (25.4 x 50.8)	√	√	√	√	√	√
40-TA-2020-1212	20 x 20 (50.8 x 50.8)	NA	√	√	√	√	√
40-TA-1010-1215	10 x 10 (25.4 x 25.4)	√	√	√	√	√	√
40-TA-1015-1215	10 x 15 (25.4 x 38.1)	√	√	√	√	√	√
40-TA-1020-1215	10 x 20 (25.4 x 50.8)	√	√	√	√	√	√
40-TA-2020-1215	20 x 20 (50.8 x 50.8)	NA	√	√	√	√	√
40-TA-1010-1217	10 x 10 (25.4 x 25.4)	√	√	√	√	√	√
40-TA-1015-1217	10 x 15 (25.4 x 38.1)	√	√	√	√	√	√
40-TA-1020-1217	10 x 20 (25.4 x 50.8)	√	√	√	√	√	√
40-TA-2020-1217	20 x 20 (50.8 x 50.8)	NA	√	√	√	√	√
40-TA-1010-1221	10 x 10 (25.4 x 25.4)	√	√	√	√	√	√
40-TA-1015-1221	10 x 15 (25.4 x 38.1)	√	√	√	√	√	√
40-TA-1020-1221	10 x 20 (25.4 x 50.8)	√	√	√	√	√	√
40-TA-2020-1221	20 x 20 (50.8 x 50.8)	NA	√	√	√	√	√
40-TA-1010-1224	10 x 10 (25.4 x 25.4)	√	√	√	√	√	√
40-TA-1015-1224	10 x 15 (25.4 x 38.1)	√	√	√	√	√	√
40-TA-1020-1224	10 x 20 (25.4 x 50.8)	√	√	√	√	√	√
40-TA-2020-1224	20 x 20 (50.8 x 50.8)	NA	√	√	√	√	√
40-TA-1010-1270	10 x 10 (25.4 x 25.4)	√	√	√	√	√	√
40-TA-1020-1270	10 x 20 (25.4 x 50.8)	√	√	√	√	√	√
40-TA-2020-1270	20 x 20 (50.8 x 50.8)	NA	√	√	√	√	√
40-TA-1010-1273	10 x 10 (25.4 x 25.4)	√	√	√	√	√	√
40-TA-1015-1273	10 x 15 (25.4 x 38.1)	√	√	√	√	√	√
40-TA-1020-1273	10 x 20 (25.4 x 50.8)	√	√	√	√	√	√
40-TA-2020-1273	20 x 20 (50.8 x 50.8)	NA	√	√	√	√	√
40-TA-1010-1285	10 x 10 (25.4 x 25.4)	√	√	√	√	√	√
40-TA-1015-1285	10 x 15 (25.4 x 38.1)	√	√	√	√	√	√
40-TA-1020-1285	10 x 20 (25.4 x 50.8)	√	√	√	√	√	√
40-TA-2020-1285	20 x 20 (50.8 x 50.8)	NA	√	√	√	√	√
40-TA-1010-1287	10 x 10 (25.4 x 25.4)	√	√	√	√	√	√
40-TA-1015-1287	10 x 15 (25.4 x 38.1)	√	√	√	√	√	√
40-TA-1020-1287	10 x 20 (25.4 x 50.8)	√	√	√	√	√	√
40-TA-2020-1287	20 x 20 (50.8 x 50.8)	NA	√	√	√	√	√
40-TA-1010-1298	10 x 10 (25.4 x 25.4)	√	√	√	√	√	√
40-TA-1015-1298	10 x 15 (25.4 x 38.1)	√	√	√	√	√	√
40-TA-1020-1298	10 x 20 (25.4 x 50.8)	√	√	√	√	√	√
40-TA-2020-1298	20 x 20 (50.8 x 50.8)	NA	√	√	√	√	√
40-TA-1010-1310	10 x 10 (25.4 x 25.4)	√	√	√	√	√	√
40-TA-1015-1310	10 x 15 (25.4 x 38.1)	√	√	√	√	√	√
40-TA-1020-1310	10 x 20 (25.4 x 50.8)	√	√	√	√	√	√
40-TA-2020-1310	20 x 20 (50.8 x 50.8)	NA	√	√	√	√	√
40-TA-1010-1350	10 x 10 (25.4 x 25.4)	√	√	√	√	√	√
40-TA-1015-1350	10 x 15 (25.4 x 38.1)	√	√	√	√	√	√
40-TA-1020-1350	10 x 20 (25.4 x 50.8)	√	√	√	√	√	√
40-TA-2020-1350	20 x 20 (50.8 x 50.8)	NA	√	√	√	√	√
40-TA-1010-1401	10 x 10 (25.4 x 25.4)	NA	√	√	√	√	√
40-TA-1015-1401	10 x 15 (25.4 x 38.1)	NA	√	√	√	√	√
40-TA-1020-1401	10 x 20 (25.4 x 50.8)	NA	√	√	√	√	√
40-TA-2020-1401	20 x 20 (50.8 x 50.8)	NA	√	√	√	√	√
40-T0-1010-6307	10 x 10 (25.4 x 25.4)	N/A	√	√	√	√	√
40-T0-1015-6307	10 x 15 (25.4 x 38.1)	N/A	√	√	√	√	√
40-T0-1020-6307	10 x 20 (25.4 x 50.8)	N/A	√	√	√	√	√
40-TA-1010-6330	10 x 10 (25.4 x 25.4)	NA	√	√	√	√	√
40-TA-1015-6330	10 x 15 (25.4 x 38.1)	NA	√	√	√	√	√
40-TA-1020-6330	10 x 20 (25.4 x 50.8)	NA	√	√	√	√	√
40-TA-1010-6371	10 x 10 (25.4 x 25.4)	√	√	√	√	√	√
40-TA-1015-6371	10 x 15 (25.4 x 38.1)	√	√	√	√	√	√
40-TA-1020-6371	10 x 20 (25.4 x 50.8)	√	√	√	√	√	√
40-TA-2020-6371	20 x 20 (50.8 x 50.8)	NA	√	√	√	√	√
40-T0-1010-6435	10 x 10 (25.4 x 25.4)	NA	√	√	√	√	√
40-T0-1015-6435	10 x 15 (25.4 x 38.1)	NA	√	√	√	√	√
40-T0-1020-6435	10 x 20 (25.4 x 50.8)	NA	√	√	√	√	√
40-TA-1010-6460	10 x 10 (25.4 x25.4)	NA	√	√	√	√	√
40-TA-1015-6460	10 x 15 (25.4 x 38.1)	NA	√	√	√	√	√
40-TA-1020-6460	10 x 20 (25.4 x 50.8)	NA	√	√	√	√	√
40-TA-2020-6460	20 x 20 (50.8 x 50.8)	NA	√	√	√	√	√
40-TA-1010-6502	10 x 10 (25.4 x 25.4)	√	√	√	√	√	√
40-TA-1015-6502	10 x 15 (25.4 x 38.1)	√	√	√	√	√	√
40-TA-1020-6502	10 x 20 (25.4 x 50.8)	√	√	√	√	√	√
40-TA-2020-6502	20 x 20 (50.8 x 50.8)	NA	√	√	√	√	√
40-TA-1010-6503	10 x 10 (25.4 x 25.4)	√	√	√	√	√	√
40-TA-1015-6503	10 x 15 (25.4 x 38.1)	√	√	√	√	√	√
40-TA-1020-6503	10 x 20 (25.4 x 50.8)	√	√	√	√	√	√
40-TA-2020-6503	20 x 20 (50.8 x 50.8)	NA	√	√	√	√	√
40-TA-1010-L6303	10 x 10 (25.4 x 25.4)	√	√	√	√	√	√
40-TA-1015-L6303	10 x 15 (25.4 x 38.1)	√	√	√	√	√	√
40-TA-1020-L6303	10 x 20 (25.4 x 50.8)	√	√	√	√	√	√
40-TA-2020-L6303	20 x 20 (50.8 x 50.8)	NA	√	√	√	√	√
40-TA-1010-S6305	10 x 10 (25.4 x 25.4)	√	√	√	√	√	√
40-TA-1015-S6305	10 x 15 (25.4 x 38.1)	√	√	√	√	√	√
40-TA-1020-S6305	10 x 20 (25.4 x 50.8)	√	√	√	√	√	√
40-TA-2020-S6305	20 x 20 (50.8 x 50.8)	NA	√	√	√	√	√
40-T0-1010-V6433	10 x 10 (25.4 x 25.4)	NA	√	√	√	√	√
40-T0-1015-V6433	10 x 15 (25.4 x 38.1)	NA	√	√	√	√	√
40-TO-1020-V6433	10 x 20 (25.4 x 50.8)	NA	√	√	√	√	√
